Constructs a solution ansatz using the overshoot/undershoot method. More...

#include <shooting_profile_guesser.hpp>

Inheritance diagram for BubbleProfiler::Shooting_profile_guesser:

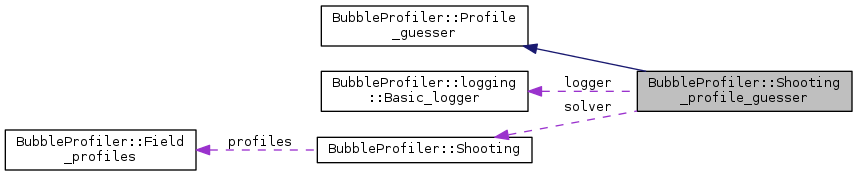

Collaboration diagram for BubbleProfiler::Shooting_profile_guesser:

[legend]

Public Member Functions
virtual	~Shooting_profile_guesser ()=default

virtual Field_profiles	get_profile_guess (const Potential &, const Eigen::VectorXd &, int, double, double, double, double) override
	Calculate an initial guess for the bubble profile. More...

void	set_trial_distance (double dist)

void	set_solver (const Shooting &s)

const Shooting &	get_solver () const

Shooting &	get_solver ()

Public Member Functions inherited from BubbleProfiler::Profile_guesser
virtual	~Profile_guesser ()=default

Private Member Functions
void	compute_vacuum_distance (const Potential &, const Eigen::VectorXd &)

void	calculate_potential_parameters (const Potential &, const Eigen::VectorXd &)

double	calculate_false_min_location () const

double	calculate_barrier_location () const

double	calculate_true_min_location () const

double	get_large_distance_solution (double, const Field_profiles &, int) const

void	solve_one_dimensional (int)

Field_profiles	calculate_field_profiles (int, double, double, double, double)

Eigen::VectorXd	update_spatial_grid (const Eigen::VectorXd &, double, double, int) const

Private Attributes
double	trial_dist {0.5}

double	alpha {0.5}

double	E {1.}

double	dist_true_vacuum {0.}

int	num_fields {0}

Shooting	solver {}

Eigen::MatrixXd	cob_matrix {}

logging::Basic_logger	logger {}

Detailed Description

Constructs a solution ansatz using the overshoot/undershoot method.

Given a multi-field potential and the location of the true vacuum, the initial guess for the bubble profile is found by first reducing the problem to an approximate 1D problem. This is then solved using the undershoot/overshoot method, and the obtained solution is converted back into the original field basis.

Definition at line 39 of file shooting_profile_guesser.hpp.

Constructor & Destructor Documentation

virtual BubbleProfiler::Shooting_profile_guesser::~Shooting_profile_guesser ( )

virtualdefault

Member Function Documentation

double BubbleProfiler::Shooting_profile_guesser::calculate_barrier_location ( ) const

private

Definition at line 462 of file shooting_profile_guesser.cpp.

References alpha, and E.

Referenced by solve_one_dimensional().

double BubbleProfiler::Shooting_profile_guesser::calculate_false_min_location ( ) const

private

Definition at line 433 of file shooting_profile_guesser.cpp.

References alpha, and E.

Referenced by get_large_distance_solution(), and solve_one_dimensional().

Field_profiles BubbleProfiler::Shooting_profile_guesser::calculate_field_profiles	(	int	d,
		double	domain_start,
		double	domain_end,
		double	initial_step_size,
		double	interpolation_points_fraction
	)

private

Definition at line 316 of file shooting_profile_guesser.cpp.

References cob_matrix, dist_true_vacuum, BubbleProfiler::Field_profiles::evaluate_at(), BubbleProfiler::Shooting::get_bubble_profile(), BubbleProfiler::Field_profiles::get_domain_end(), BubbleProfiler::Field_profiles::get_domain_start(), get_large_distance_solution(), BubbleProfiler::Field_profiles::get_number_of_grid_points(), BubbleProfiler::Field_profiles::get_spatial_grid(), num_fields, BubbleProfiler::Shooting::quadratic_potential_solution(), BubbleProfiler::Field_profiles::set_interpolation_points_fraction(), BubbleProfiler::Field_profiles::set_number_of_dimensions(), solve_one_dimensional(), solver, and update_spatial_grid().

Referenced by get_profile_guess().

void BubbleProfiler::Shooting_profile_guesser::calculate_potential_parameters	(	const Potential &	potential,
		const Eigen::VectorXd &	true_vacuum
	)

private

Definition at line 237 of file shooting_profile_guesser.cpp.

References BubbleProfiler::Abs(), alpha, BubbleProfiler::calculate_rotation_to_target(), BubbleProfiler::Potential::clone(), cob_matrix, dist_true_vacuum, E, BubbleProfiler::logging::Basic_logger::log_message(), logger, num_fields, BubbleProfiler::logging::Trace, and trial_dist.

Referenced by get_profile_guess().

double BubbleProfiler::Shooting_profile_guesser::calculate_true_min_location ( ) const

private

Definition at line 493 of file shooting_profile_guesser.cpp.

References alpha, and E.

Referenced by solve_one_dimensional().

void BubbleProfiler::Shooting_profile_guesser::compute_vacuum_distance	(	const Potential &	potential,
		const Eigen::VectorXd &	true_vacuum
	)

private

Definition at line 219 of file shooting_profile_guesser.cpp.

References BubbleProfiler::Abs(), dist_true_vacuum, BubbleProfiler::Potential::get_number_of_fields(), and num_fields.

Referenced by get_profile_guess().

double BubbleProfiler::Shooting_profile_guesser::get_large_distance_solution	(	double	rho,
		const Field_profiles &	profile,
		int	d
	)		const

private

Definition at line 522 of file shooting_profile_guesser.cpp.

References BubbleProfiler::Abs(), alpha, BubbleProfiler::BesselK(), calculate_false_min_location(), BubbleProfiler::Field_profiles::derivative_at(), E, BubbleProfiler::Exp(), BubbleProfiler::Field_profiles::get_domain_end(), and BubbleProfiler::Sqrt().

Referenced by calculate_field_profiles().

Field_profiles BubbleProfiler::Shooting_profile_guesser::get_profile_guess	(	const Potential &	potential,
		const Eigen::VectorXd &	true_vacuum,
		int	n_dimensions,
		double	domain_start,
		double	domain_end,
		double	initial_step_size,
		double	interpolation_points_fraction_
	)

overridevirtual

Calculate an initial guess for the bubble profile.

The calculated profiles should be evaluated at the requested number of points, n_grid_points , between the minimum and maximum radial coordinate values, domain_start and domain_end , respectively. If a negative value is given for either of these, appropriate values are to be guessed based on the given potential and vacuum location.

Note: The false vacuum is assumed to be at the origin in field space.

Parameters

potential	the potential for which the profiles are to be computed
true_vacuum	the location of the true vacuum in field space
n_dimensions	the number of space-time dimensions
domain_start	the minimum value of the radial coordinate at which the profiles are evaluated. If negative, the function should guess an appropriate value.
domain_end	the maximum value of the radial coordinate at which the profiles are evaluated. If negative, the function should guess an appropriate value.
initial_step_size	the initial step size to be used in constructing the discretized solution
interpolation_points_fraction	fraction of grid points to use for interpolation

Returns: an initial guess for the field profiles

Implements BubbleProfiler::Profile_guesser.

Definition at line 207 of file shooting_profile_guesser.cpp.

References calculate_field_profiles(), calculate_potential_parameters(), and compute_vacuum_distance().

const Shooting& BubbleProfiler::Shooting_profile_guesser::get_solver ( ) const

inline

Definition at line 51 of file shooting_profile_guesser.hpp.

References solver.

Shooting& BubbleProfiler::Shooting_profile_guesser::get_solver ( )

inline

Definition at line 52 of file shooting_profile_guesser.hpp.

References solver.

void BubbleProfiler::Shooting_profile_guesser::set_solver ( const Shooting & s )

inline

Definition at line 49 of file shooting_profile_guesser.hpp.

References solver.

void BubbleProfiler::Shooting_profile_guesser::set_trial_distance ( double dist )

inline

Definition at line 48 of file shooting_profile_guesser.hpp.

References trial_dist.

void BubbleProfiler::Shooting_profile_guesser::solve_one_dimensional ( int d )

private

Definition at line 287 of file shooting_profile_guesser.cpp.

References alpha, calculate_barrier_location(), calculate_false_min_location(), calculate_true_min_location(), E, BubbleProfiler::Shooting::solve(), and solver.

Referenced by calculate_field_profiles().

Eigen::VectorXd BubbleProfiler::Shooting_profile_guesser::update_spatial_grid	(	const Eigen::VectorXd &	old_grid,
		double	new_start,
		double	new_end,
		int	new_length
	)		const
